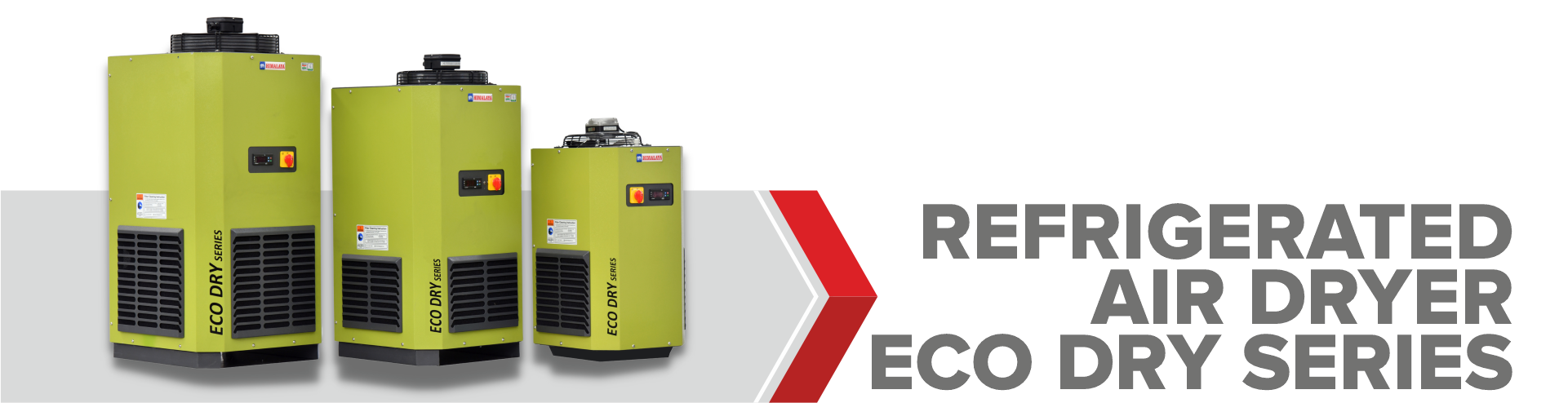

Refrigerated Air Dryer

Product Description

HIMALAYA is dedicated to manufacturing high quality refrigerated air dryers, designed to remove moisture and contaminates from compressed air systems. We select only the highest quality components and materials to use in the manufacturing process of our dryers.

Through a process of rationalization and innovation our dryers have evolved into a high quality product backed by the industry's longest warranty. Thousands of our dryers are installed in some of the most well known industriesWe are grateful for our customers giving us the opportunity to serve their needs and we understand that our success depends on our ability to supply world class quality and service.

Features:

  • Insulated heat exchanger
  • Energy saving—true green product
  • 3-in-1 heat exchanger
  • High efficiency compressors
  • Globally marketable refrigerant R-134a
  • Standard electronic timer drains



  • Refrigerant analyzer indicator
  • Fan cycle switch
  • Easy removable side panels and parts
  • Consistent dew point performance
  • Low power consumption



  • Low pressure drop
  • Evaporator with multi-stage separator stainless steel demister
  • High quality fan motors
  • Oversized condenser
  • HP,LP,WP overload safety trips.

Why Us ?


  • Costumers-Img Model - Hrad
  • Costumers-Img Capacity 20-200cfm
  • Costumers-Img Compact Design Smaller Footprint
  • Costumers-Img Easy To Handle
  • Costumers-Img Low Noise Operaion
  • Costumers-Img Plug & Play
  • Costumers-Img SS Heat Exchanger
  • Costumers-Img Polyurethane Micro Filter
  • Costumers-Img Fully Programmable Micro-Controller
  • Costumers-Img Auto Drain Valve
  • Costumers-Img Auto Cut-Off
  • Costumers-Img GI Powder Coated

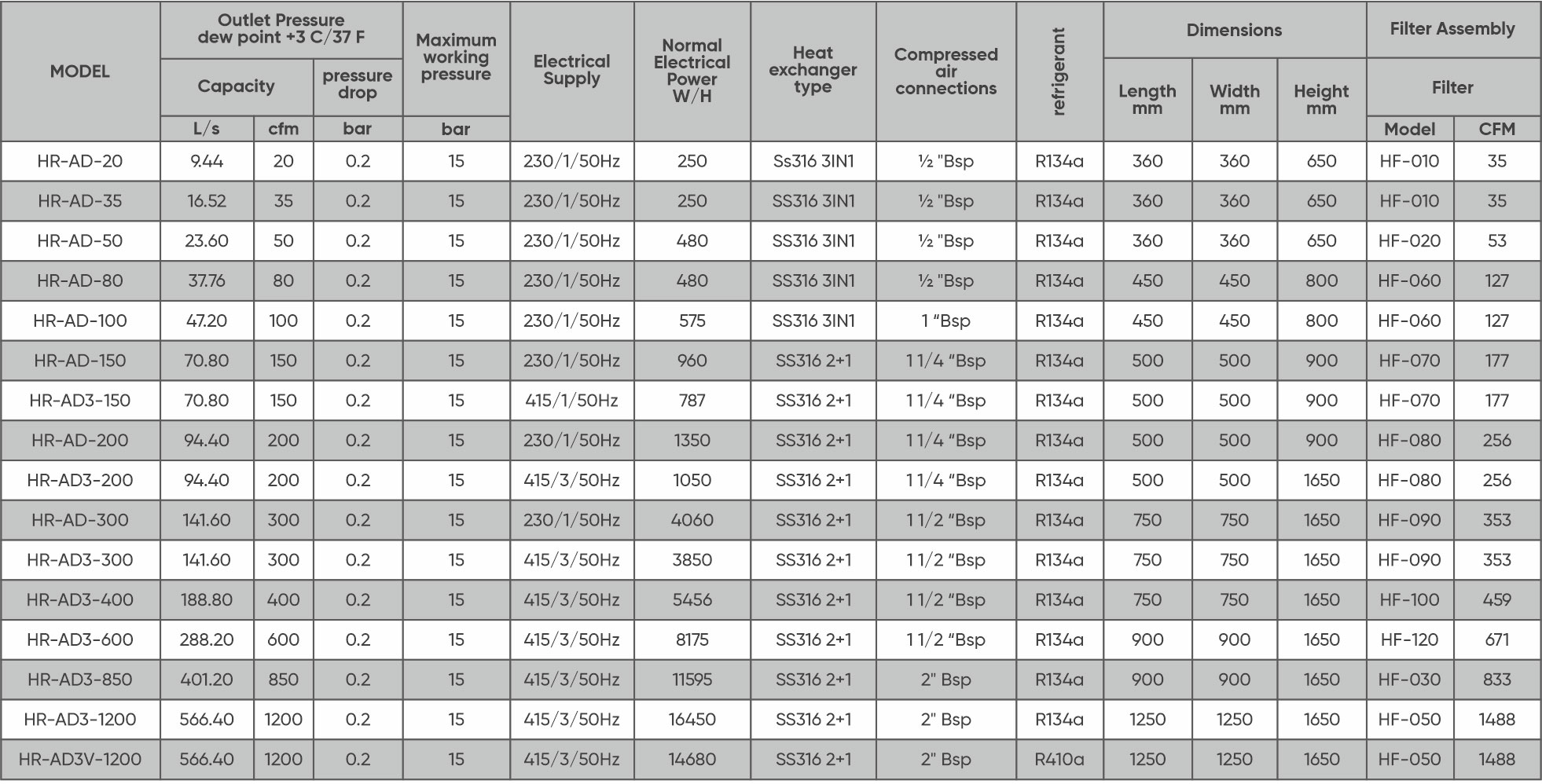

MODEL

CAPACITY

PRESSURE

POWER

DEW

CONNECTION

DIMENSION

CFM

BAR g

PSI g

INPUT

POINT

WIDTH

DEPTH

HEIGHT

weight kg approx

HR-AD-20

20

16

232

230V 1PH 50Hz

3 c

.1/2 BSP (F)

360

361.2

648

31.89

HR-AD-35

35

16

232

230V 1PH 50Hz

3 c

.1/2 BSP (F)

360

361.2

648

32.61

HR-AD-50

50

16

232

230V 1PH 50Hz

3 c

.1/2 BSP (F)

360

361.2

648

34.67

HR-AD-80

80

16

232

230V 1PH 50Hz

3 c

.1/2 BSP (F)

360

361.2

648

36.45

HR-AD-120

120

16

232

230V 1PH 50Hz

3 c

.1/2 BSP (F)

508

503

833

XX.XX
