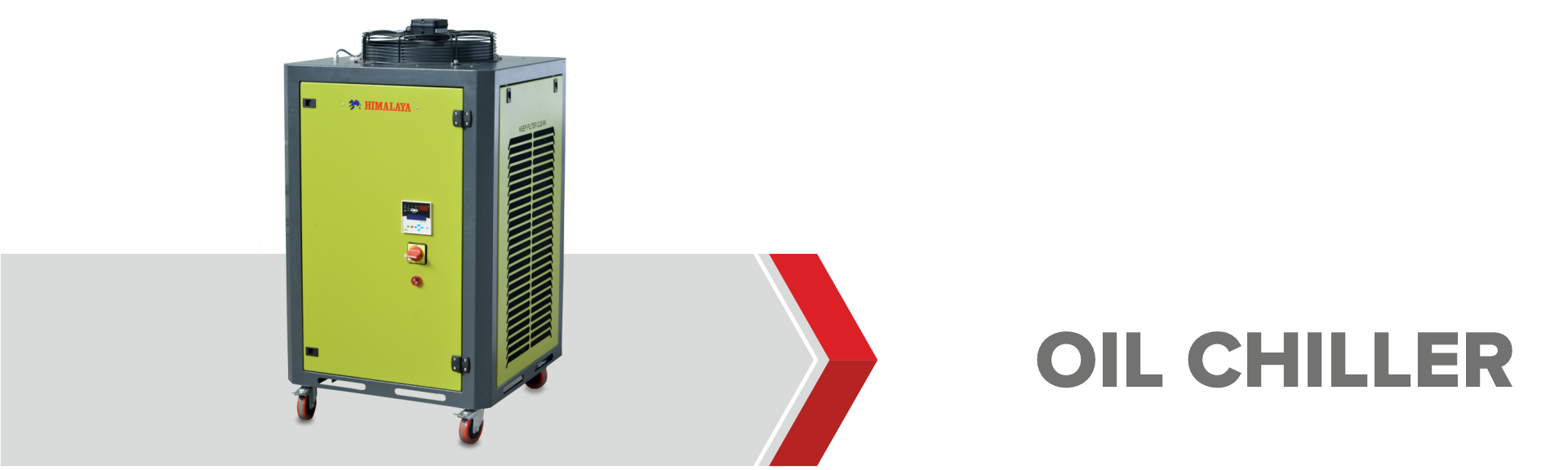

Oil Chiller
About Product
Efficient Cooling Solutions for Optimal Machine Performance
Himalaya Oil Chillers, manufactured in India, are specifically engineered to provide direct cooling of oil through refrigerant-to-oil heat exchange circuits. These chillers are designed to effectively regulate the temperature of the oil, even when the oil entering the evaporator is at higher temperatures than the specified process cooling requirements. Additionally, the outlet temperature of the oil is maintained at elevated levels. The unique design of these chillers allows them to operate effectively in highly tropical climates and handle high fluid temperatures.
Careful consideration is given to the design and selection of equipment to ensure compliance with specific cooling requirements, as well as the ability to handle high oil pressures.
Products Features
- The equipment offers year-round operation, allowing for continuous operation as it effectively controls the temperature of the oil. The oil temperature can be precisely maintained within the range of 25°C to 40°C.
- Energy-efficient operations and precise cooling are ensured by the implementation of high-efficiency plate heat exchangers. These heat exchangers not only promote efficient energy utilization but also provide accurate temperature control.
- The system cabinet and components are designed to be rugged, enabling reliable and continuous industrial operation without compromising performance. This robust design ensures the equipment's durability in demanding industrial environments.
- To ensure precise and tamper-proof operation, the equipment is equipped with microprocessor-based digital temperature controllers. These controllers offer accurate temperature monitoring and control while preventing unauthorized access to settings.
- Reliable and continuous operation is facilitated by high-efficiency gear pumps. These pumps are designed to deliver consistent performance and are vital for maintaining the smooth operation of the system. Furthermore, the compressor, fan, and pump are each independently operated electrically, enhancing overall system reliability.
- The systems are factory packaged, tested, wired, charged, and piped, ensuring convenience and efficiency during installation. Before installation, the systems undergo thorough testing to ensure optimal operational and cooling performance.
Products Applications
- CNC machining center, CNC grinding machine, broaching machine, CNC woodworking
- Hydraulic system.
- Machine,CNC punching machine, CNC lathe, high speed lathe.
- High speed spindle.
Products Specifications
| MODEL | COOLING | POWER | CONNECTIONS | |
|---|---|---|---|---|
| CAPACITY(tons) | consumption(kW/h) | INPUT | ||
| HR-OCHILL-2.25-PHE | 1.5 TR | 1.6 | 415V AC 3Ph 50/60Hz | 1″ BSP |
| HR-OCHILL-7-PHE | 2 TR | 2.75 | 415V AC 3Ph 50/60Hz | 1″ BSP |
| HR-OCHILL-8.82-PHE | 2.5 TR | 3.24 | 415V AC 3Ph 50/60Hz | 1″ BSP |
| HR-OCHILL10.41-PHE | 3TR | 3.84 | 415V AC 3Ph 50/60Hz | 1″ BSP |
