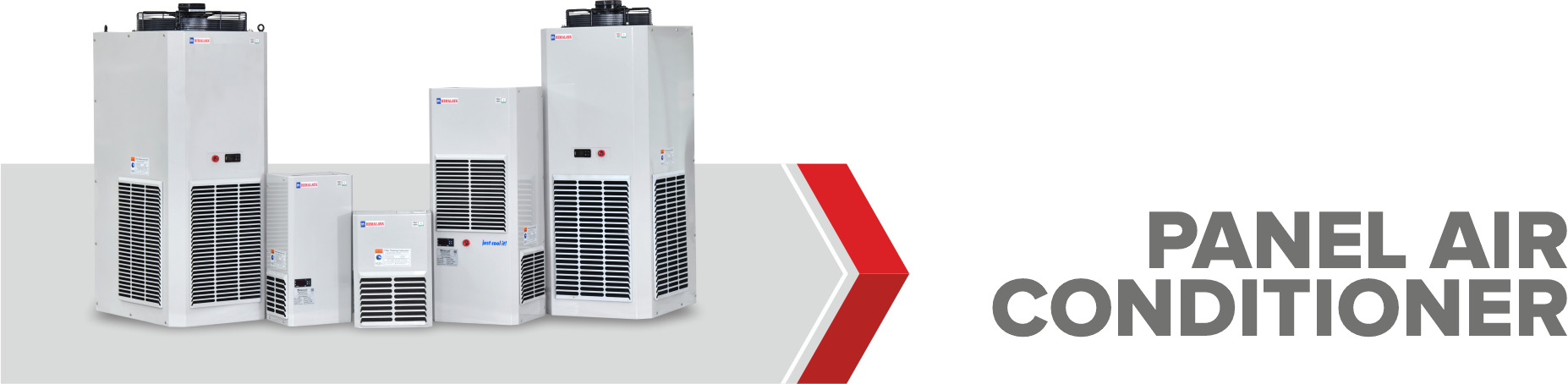

Panel Air Conditioner
About Product
State of Art Enclosure Cooling Range With Highest Energy Efficiency While Handling Peak Heat Load
HIMALAYA'S panel air conditioner units are excellent match to your electrical and electronic panel cooling needs.
These units are designed specifically understanding the high sensible cooling requirement panel able to run non stop
for long hours. High reliable components and electronics supported by high ambient design ensure your machines work
smoothly all year round.
The model is available with various capacity ranged from 250 to 8550 W/h on single chassis. Them mounting, power
supply & refrigerant options are available.
Products Features
Energy Efficient Balanced Design
High Ambient Temperature Efficient
High Efficiency Heat Exchanger & Air Flow
GI Sheet Metal With Powder Coated
Maximum Utilization of Natural Law of Heat Transfer
Easy Mount Studs For Simple Installation
CE Certified European Confirmity
Products Applications
Products Specifications
| MODEL | COOLING | POWER | REFRIGERANT | MOUNTING | DIMENSION mm | WEIGHT kg | |||
|---|---|---|---|---|---|---|---|---|---|
| CAPACITY(kcal/h) | WATTS | INPUT | GAS | TYPE | HEIGHT | WIDTH | DEPTH | APPROX | |
| PACS-250-DS | 250W/h (215kcal/h) | 230 | 415V AC, 3 Ph, 50/60 Hz | R134a | DOOR/SIDE | 475 | 340 | 240 | 23 |
| PACS-550-DS | 550W/h (473kcal/h) | 320 | 230 V AC, 1 Ph, 50/60 Hz | R134a | DOOR/SIDE | 475 | 340 | 240 | 23 |
| PACS-1050-DS | 1050W/h (903kcal/h) | 600 | 230 V AC, 1 Ph, 50/60 Hz | R134a | DOOR/SIDE | 640 | 340 | 245 | 30 |
| PACS-1550-DS | 1550W/h (1333kcal/h) | 850 | 230 V AC, 1 Ph, 50/60 Hz | R134a | DOOR/SIDE | 1000 | 440 | 350 | 59 |
| PACS-2550-DS | 2550W/h (2193kcal/h) | 1350 | 230 V AC, 1 Ph, 50/60 Hz | R134a | DOOR/SIDE | 1000 | 440 | 350 | 63 |
| PACS-4550-S | 4550W/h (3912kcal/h) | 1700 | 230 V AC, 1 Ph, 50/60 Hz | R134a / R22 | SIDE | 1400 | 500 | 620 | 104 |
| PACS-6550-S | 6550W/h (5632kcal/h) | 2200 | 415 V AC, 3 Ph, 50/60 Hz | R134a / R22 | SIDE | 1400 | 500 | 720 | 114 |
| PACS-8550-S | 8550W/h (7352kcal/h) | 2600 | 415 V AC, 3PH, 50/60 Hz | R134a / R22 | SIDE | 1400 | 500 | 720 | 134 |
*Available on demand in stainless steel 304 body, top mount & power supply options.
*Due to continuous product improvements & its incorporation, HIMALAYA reserves the right to changes the design,
technical specifications & dimensions without prior notice.
